Agent Face

Starting State

Use the vizij-web workspace root:

cd /home/chris/Code/Semio/vizij_ws/vizij-web

This walkthrough uses apps/tutorial-agent-face, the maintained Vizij example that layers a live service loop on top of the same runtime foundation used in tutorial-fullscreen-face.

Scope note

Open this page only if your product really has an external session or service loop.

If you only need a local embedded face:

1. stay with Minimal Web Player,
2. use Application Integration Patterns to choose the lighter app shape,
3. come back here only when a separate session layer is a real requirement.

Required And Optional Setup

Install dependencies once:

pnpm install

If you want the full live-session path, create the app-local env file:

cat > apps/tutorial-agent-face/.env.local <<'EOF'
VITE_GEMINI_API_KEY=your_google_ai_studio_key
EOF

Then start the app:

pnpm run dev:tutorial-agent-face

Two valid ways to use this page:

1. without VITE_GEMINI_API_KEY, inspect the runtime shell and local interaction layers
2. with VITE_GEMINI_API_KEY, complete the full runtime-plus-session walkthrough

What You Can Validate Without The API Key

The missing API key only blocks the live session layer. It does not erase the rest of the maintained app.

If the page loads, the face becomes ready, and the UI reports a missing key or disconnected session separately from runtime readiness, the app is still teaching the right advanced-integration boundary.

The Pattern You Are Learning

This page teaches one reusable application shape:

1. a stable Vizij runtime shell
2. a separate external session layer
3. a tool bridge that translates service events into Vizij runtime actions
4. UI state that tells you which layer is healthy or failing

That is the whole advanced-integration idea.

Walkthrough

1. Launch the richer app and identify the runtime shell

Run:

pnpm run dev:tutorial-agent-face

Open the local URL shown by Vite.

Expected result:

1. the face appears through the same runtime-react foundation used by the simpler tutorial
2. the UI has more controls and session-facing chrome than tutorial-fullscreen-face
3. the app is clearly more product-shaped without being a different runtime model

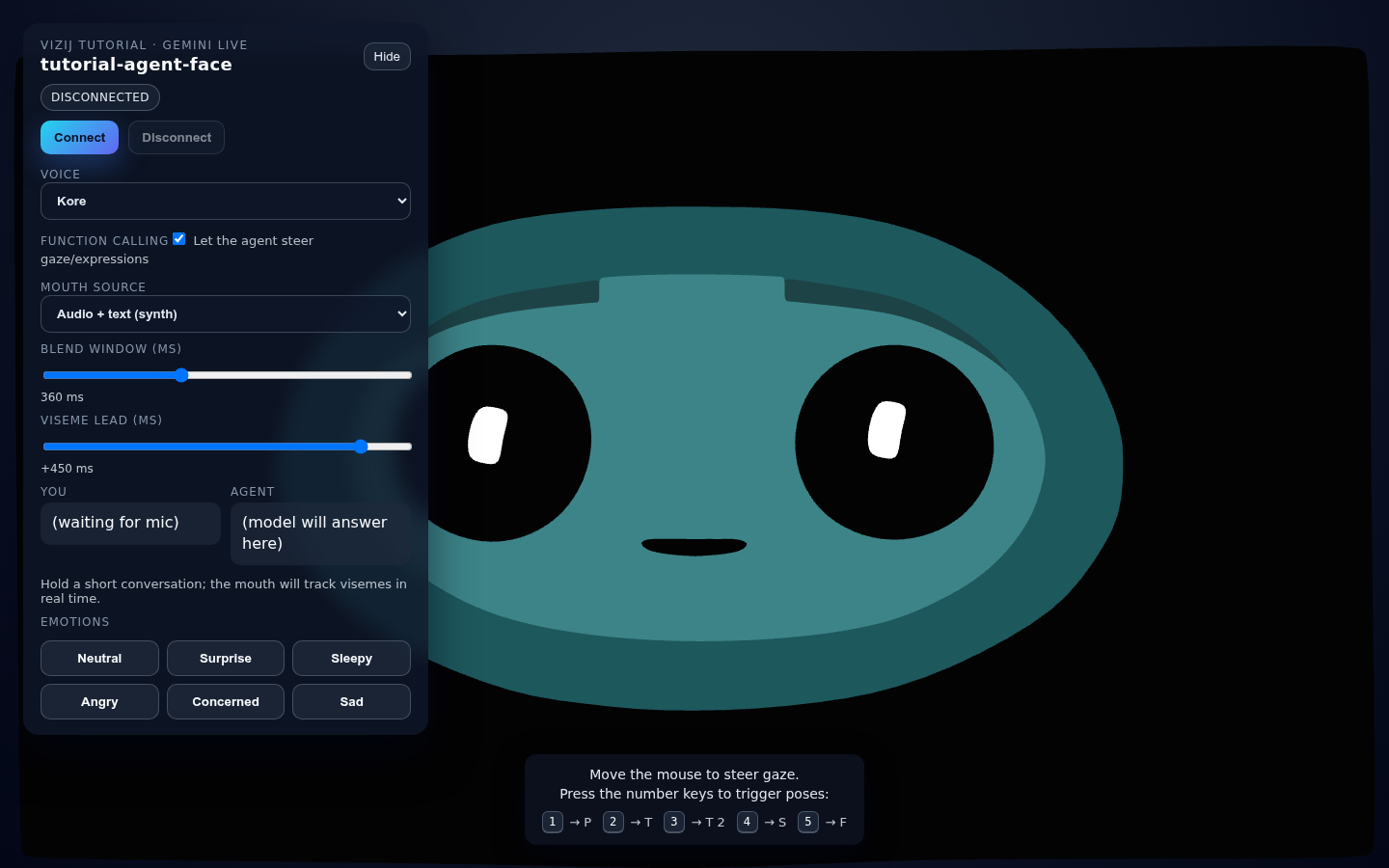

Current visual anchor:

That is the point of using this capture here: it lets the page separate runtime readiness from session readiness before the live service path enters the story.

2. Separate runtime readiness from session readiness

Before connecting any live session, inspect the UI and app behavior.

What to look for:

1. the face runtime can become ready even if the external session is disconnected
2. a missing API key or disconnected session does not mean the runtime failed
3. local behavior such as face presence, base interactions, and UI shell rendering still prove that the Vizij layer is healthy

This is the first advanced lesson:

1. runtime readiness answers can the face load and respond
2. session readiness answers can the external service connect and drive richer behavior

Do not collapse those into one state.

3. Inspect how the app keeps the runtime foundation small

Open:

1. vizij-web/apps/tutorial-agent-face/src/FaceApp.tsx
2. vizij-web/apps/tutorial-agent-face/src/hooks/useGeminiLive.ts
3. vizij-web/apps/tutorial-agent-face/src/hooks/useAgentFaceTools.ts

The runtime bootstrap still looks like this:

export function FaceApp() {
  return (
    <VizijRuntimeProvider assetBundle={assetBundle} autostart>
      <AgentFaceRuntime />
    </VizijRuntimeProvider>
  );
}

That small bootstrap matters. The app becomes rich by adding layers around the runtime, not by replacing it.

4. Follow the live-service bridge in code

Inside FaceApp.tsx, look for the boundary between session logic and runtime logic:

const { tools, handleFunctionCalls, gazeActive } = useAgentFaceTools({
  enabled: ready,
  bindings,
});

const { status: geminiStatus, connect, disconnect } = useGeminiLive(
  audioManager,
  voiceName,
  {
    enableTools: toolsEnabled,
    tools,
    handleFunctionCalls: toolsEnabled ? handleFunctionCalls : undefined,
    systemInstruction: SYSTEM_INSTRUCTION,
  },
);

What this means:

1. useGeminiLive owns the external session
2. useAgentFaceTools owns the translation from tool calls into Vizij runtime actions
3. the face still moves through runtime helpers such as setInput(...) and animateValue(...)

This translation layer is the part you copy into your own advanced app.

5. Complete the full live-session path if you configured the API key

If VITE_GEMINI_API_KEY is configured:

1. connect the session from the UI
2. trigger a short interaction
3. watch for transcript or session-state feedback
4. observe gaze, emotion, or mouth behavior update through the face surface

Expected result:

1. the session state changes independently from runtime readiness
2. tool-driven actions become visible face changes
3. the UI tells you whether the problem is in the runtime layer, the session layer, or the tool layer

If you did not configure the API key, stop after step 4 and treat the disconnected session as an intentional boundary, not a failed tutorial.

Why This Example Teaches Well

This app is the best maintained advanced guide because it shows all of these at once:

1. the runtime shell remains recognizable
2. a live service loop is clearly separate from runtime loading
3. the tool bridge is explicit in code
4. the surrounding UI helps diagnose where the system is healthy or failing

That combination is what makes it a reusable integration pattern instead of just a flashy demo.

Fast Recovery If It Fails

Use these shortcuts:

1. if the face never loads, treat that as a runtime problem and compare against Hello Face Quickstart
2. if the face loads but the session will not connect, check whether VITE_GEMINI_API_KEY is configured
3. if the session connects but the face does not react, inspect useAgentFaceTools.ts and compare the expected bridge shape in this page
4. if you need route-level healthy-state checks, use Validation Checkpoints
5. if you need failure-driven recovery, use Troubleshooting Matrix

Recommended Next Steps

Continue to Rich Interactive Applications if you want the broader family of advanced integration patterns.

If you want to return to the simpler integration spine, go back to Minimal Web Player.
